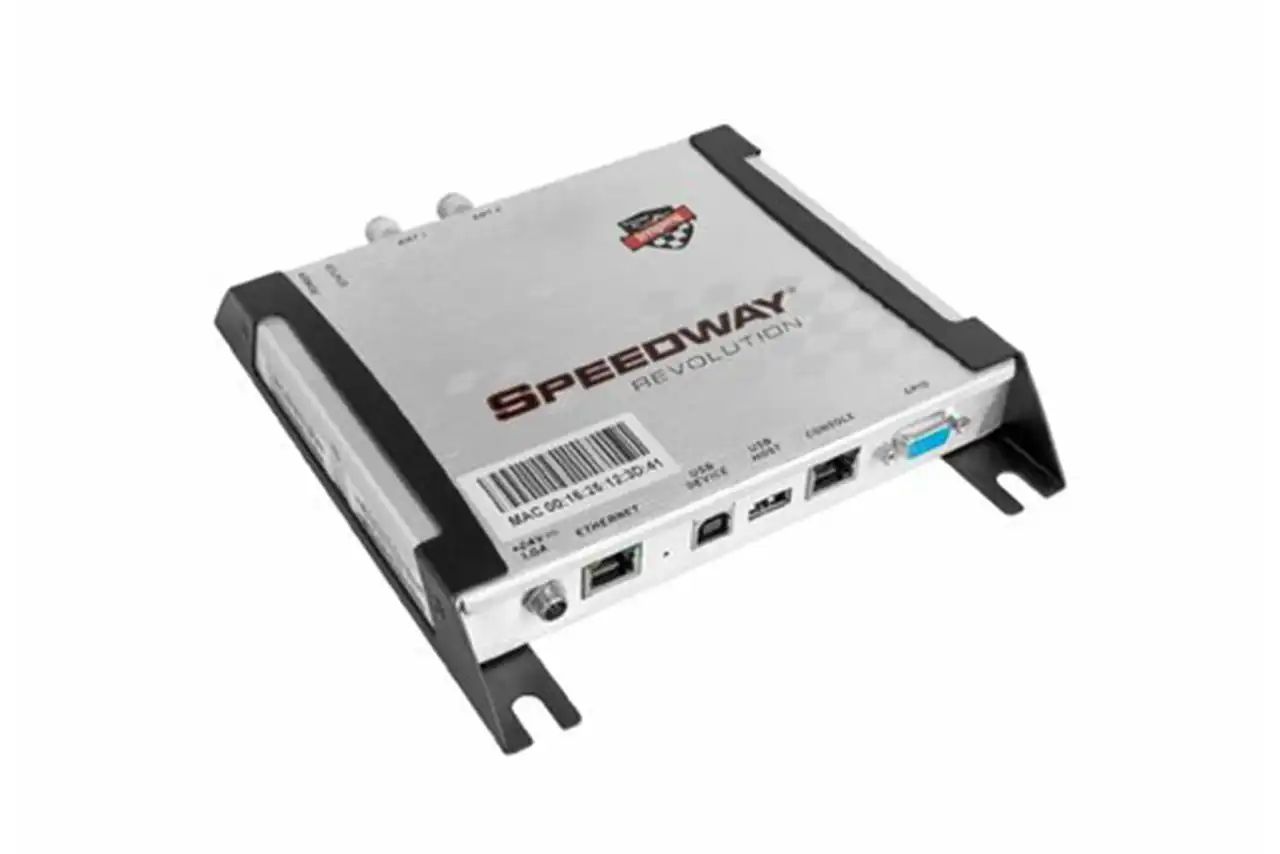

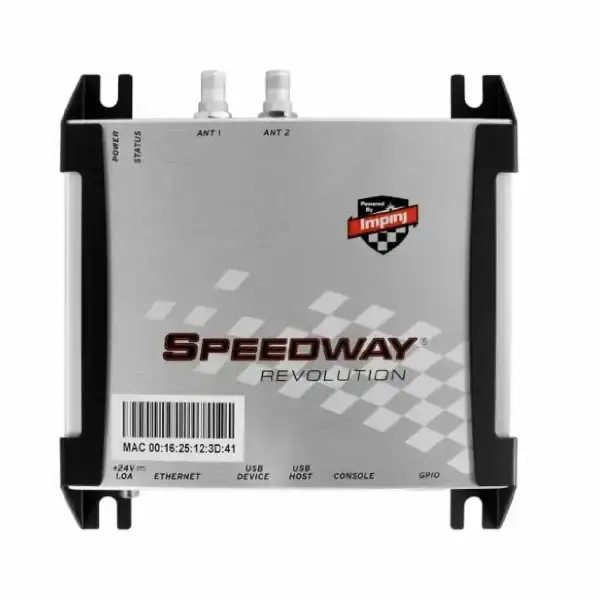

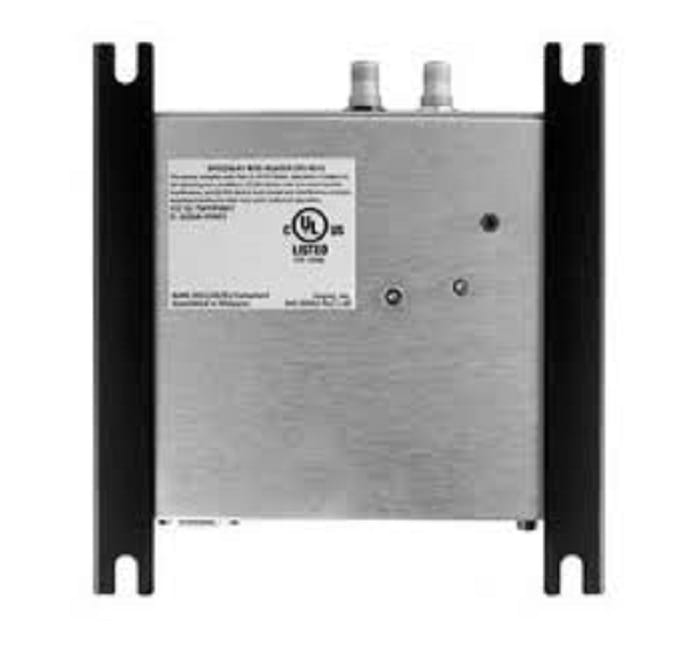

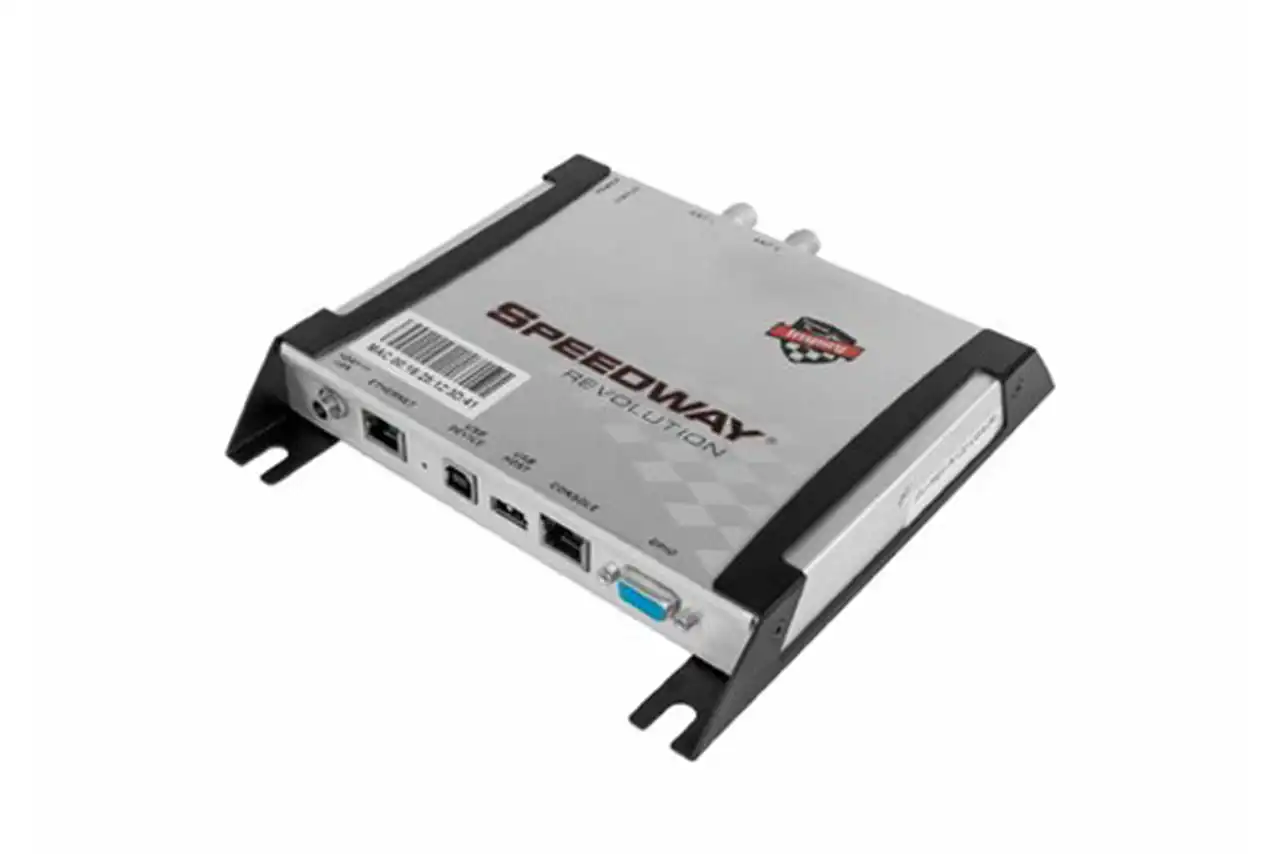

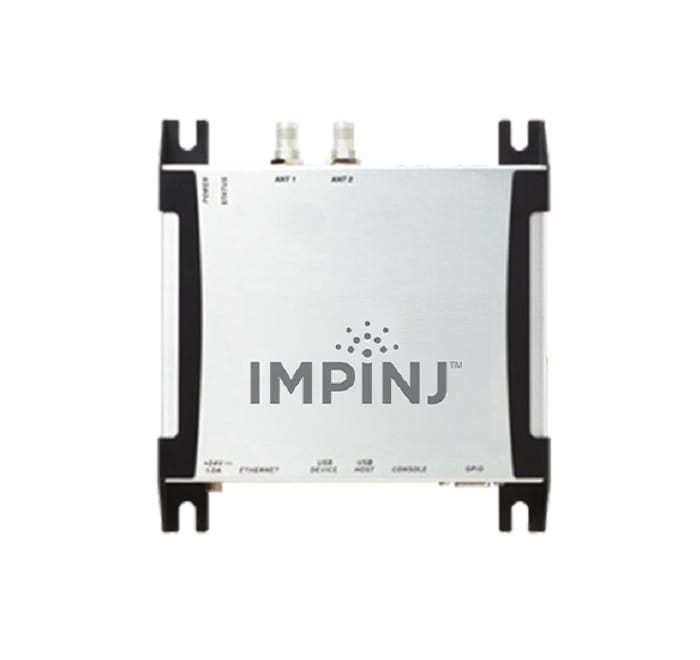

IMPINJ R220 RFID Okuyucu

Impinj R220 Sabit Okuyucu | RFID Depo | RFID Ürünleri ve Çözümleri

Ürün İsmiImpinj R220 UHF RFID Okuyucu
ProtokolGS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Antenler 2 monostatik (RP TNC) anten portu. Impinj antenler için optimize edilmiştir.
Maksimum algılama hassasiyet -82 dB
RF İletim gücü +10.0 to +32.5 dBm (harici güç kaynağı ile)-
Uygulama Arayüzü EPC global Low Level Reader Protocol (LLRP) v1.0.1, Speedway Revolution SDK & EDK
Çevresel korumaIP52
Ölçüleri(Y x G x D) 19 x 17.5 x 3 cm
Ağırlık700g
Güç kaynağı seçenekleriPower over Ethernet (PoE) IEEE 802.3af, +24 VDC @ 800mA harici güç kaynağı ile (ayrıca satılır)
GPIO4 giriş (3-30V) / 4 çıkış, optik izoleli, 0-30V
Network BağlantısıUSB 1.1 Device (Tip B) ve Host (Tip A) portları• USB Virtual COM Seri Port ve dahili uygulamalar için USB drive desteği
USBUSB 1.1 Device (Type B) and Host (Type A) ports • USB Virtual COM Serial Port and USB drive support for embedded applications”

Marka

Impinj

Impinj is defined as the world leader in RFID technology, maker of the famous Monza chips, the INDY 2000 integrated circuit and the Speedway readers. Based in Seattle (USA), its founder Dr. Chris Diorio has been awarded many times as the innovator of the year in RFID technology.
