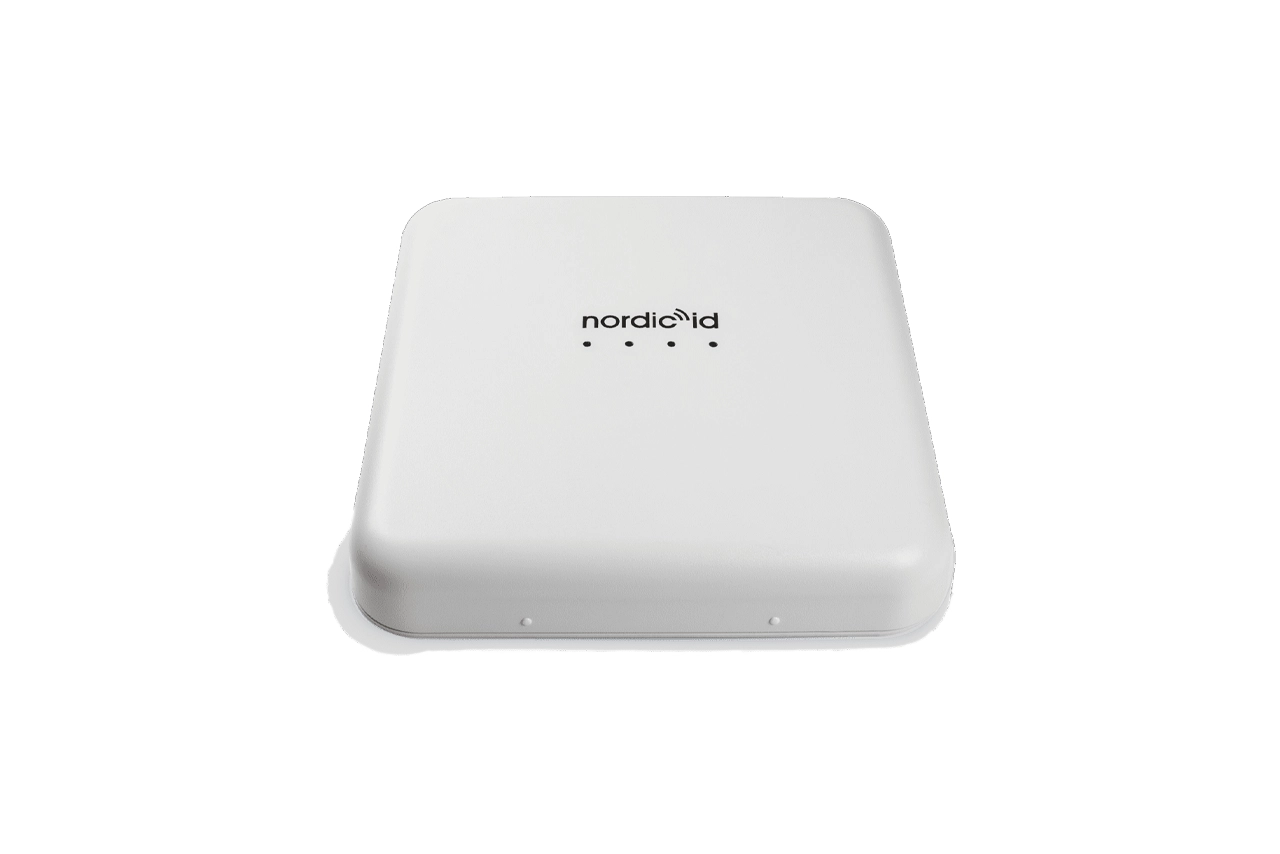

NORDIC ID AR85 Okuyucu

Nordic ID AR85 sabit alan okuyucusu, çoklu bağlantı seçenekleriyle güçlü, otomatik UHF RFID performansı sağlar.Bu sabit alan okuyucusu Nordic ID NUR2-1W modülünü ve 1000 adede kadar etiket / s okuma hızında 120 m² taban alanı kaplamayı sağlayan sofistike anten çözümünü içerir. Artık okunması zor olan etiketlerin bile tespit edilmesi daha kolay olacaktır. Entegre bilgisayarı sayesinde 3. parti uygulamaları okuyucuya yüklenebilir ve çalıştırılabilir. Nordic ID AR85, belirlenmiş bir alanı verimli bir şekilde izlemek için idealdir.

Ürün İsmiNORDIC ID AR85 Okuyucu
Çalışma FrekansıETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz-
Ölçüleri(W) 15.9 x (L) 15.9 x (H) 2.7 mm
Ağırlık 2.4 kg

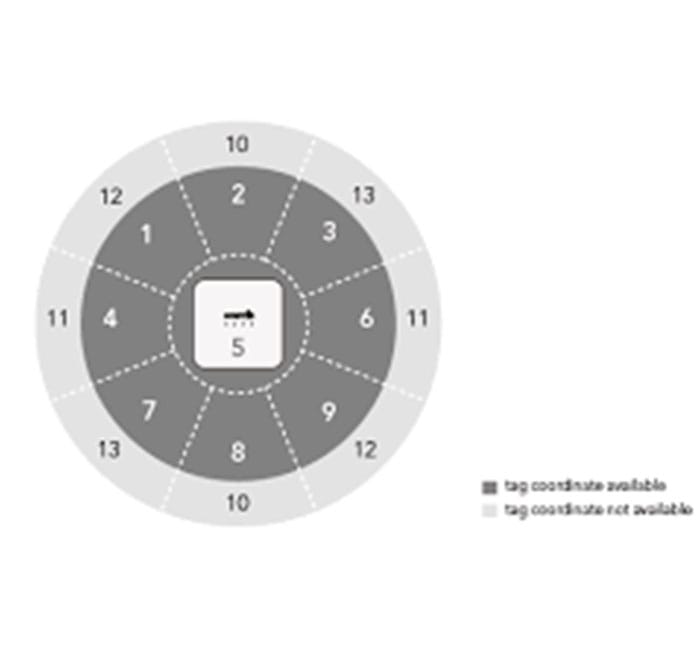

Anten ÖzellikleriRadiation beams: 13 (26 radiation states due to dual polarization)
Polarization: Dual-Linear
3dB Beam width: 45 °
Beam steering: ± 40
RF Power33 dBm (2 W) ERP / 4 W EIRP
Tarama AlanıMax. 120 m² (2 x installation height)
Okuma HızıUp to 1000 tags/s
CPU1.2GHz 64-bit Quad-Core Cortex-A53 processor
BağlantıIEEE 802.11 a/b/g/n. Dual band WLAN, supports 2.4 GHz and 5 GHz networks,3G,Bluetooth 4.2, USB 2.0 via micro USB connector
Desktop charger provides USB connectivity via micro USB connector
Bellek 1 GB RAM
4 GB flash
Wireless LAN (optional)IEEE 802.11 a/b/g/n, works as an WLAN access point for other Nordic ID readers
Dual band WLAN, supports 2.4 GHz and 5 GHz networks
Power12W PoE, 20 W DC
Note! Wireless LAN and WAN disabled in PoE use
IP SınıfıIP20, for indoor use only
Çalışma SıcaklığıOperating:20° to +55 °C
Storage: -20° to +80 °C
GPIO4 inputs, opto isolated, max. 24V
4 outputs, opto isolated, max. 50mA

Marka

Nordic ID
